DIN 1498

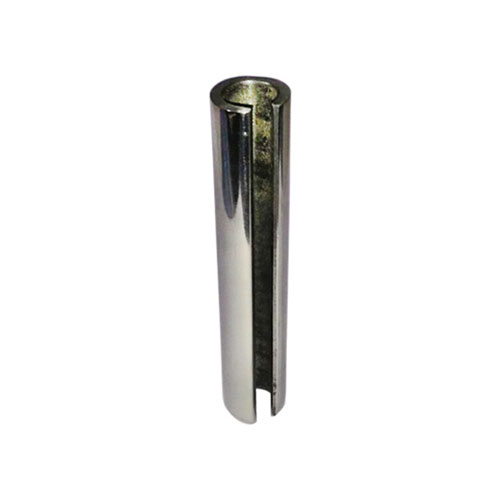

Spring Dowel Sleeves (DIN 1498 Tension Bushings)

Tension Bushings

Hardened spring dowel sleeves designed to fit into worn bores and pivots, providing excellent wear resistance and radial spring compression for mechanical linkages.

Materials Available: Carbon Spring Steel, Stainless Steel

Standard Size Range: 10 mm --- 100 mm (Outer Diameter)

Standard Finishes: Plain / Light Oil, Phosphate Coating

Request A Quote Download Dimension Table

DIN 1498 Spring Dowel Sleeves Overview & Technical Specs

Spring dowel sleeves are split cylindrical bushings manufactured from high-grade spring steel. They are compressed upon insertion, providing a secure friction fit inside housings, protecting host assemblies from wear.

Tension Bushings & Clamping Sleeves Features & Benefits

High hardness and wear resistance.
Concentric expansion provides perfect bore grip.
Allows for easy replacement in pivot joints.
Reduces machining tolerances for bore rehabilitation.
Meets DIN 1498 guidelines.

Construction Equipment & Pivot Linkage Applications

Our Spring Dowel Sleeves components are used across multiple sectors for critical positioning assemblies:

Excavator pivot joint bushings
Industrial hinge and linkage linings
Agricultural machinery pivots
Heavy crane assembly protection

Request Bulk Quotation for DIN 1498 Spring Sleeves

Fill out the form below to receive a custom commercial quotation for our Spring Dowel Sleeves.

First Name *

Last Name *

Company Name *

Email Address *

Country *

Phone Number *

Select Product

Estimated Quantity *

Custom Specifications / Message

Typical response window: 1-2 hours.

Spring Dowel Sleeves (DIN 1498) FAQs

What is the difference between a spring dowel sleeve and a spring pin- +
